Galaxy Note 2 N7100 Gets XXUEMJ5 Android 4.3 Leaked Test Firmware

Another Android 4.3 Jelly Bean test firmware with build version XXUEMJ5 has been leaked for the Samsung Galaxy Note 2 bearing model number GT-N7100.

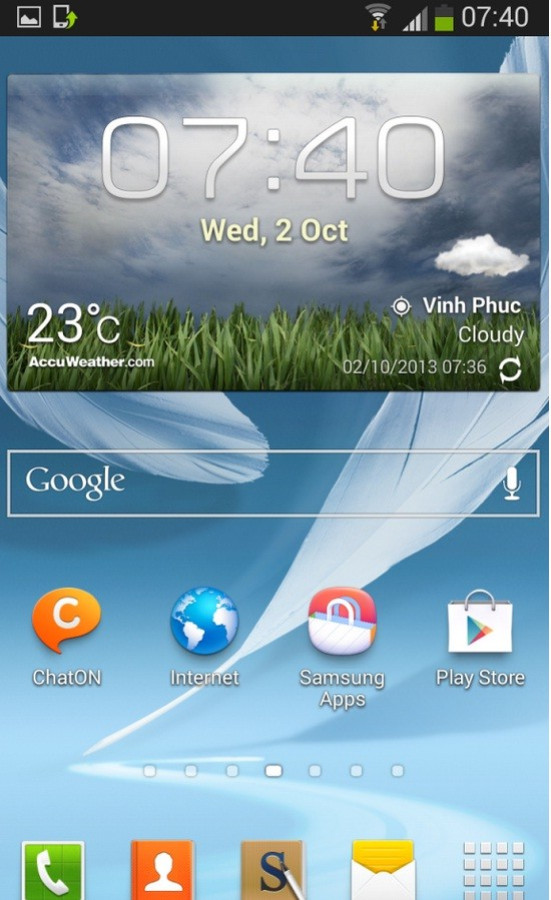

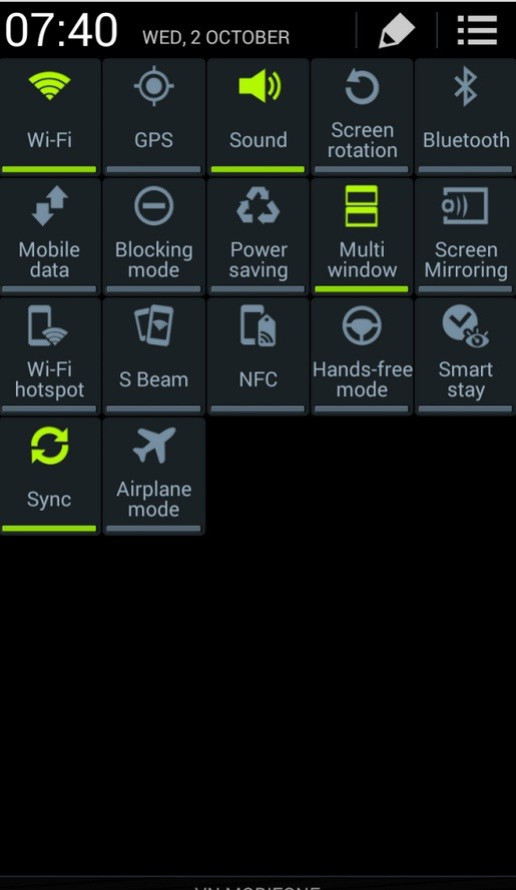

With the Android 4.3, Samsung has updated the UI elements, which is more like the interface of Galaxy Note 3 and the Galaxy S4 including the tabbed button settings.

Besides, Samsung Wallet and Samsung Knox are also added in the test firmware. However, the Android 4.3 is still going through development phases and Samsung is likely to add more features before releasing the final version.

Firmware details

Model: GT-N7100

Country: Open Asia

Version: Android 4.3 Jelly Bean

Changelist: 1903221

Build date: 16 October, 2013

Product code: OLB

PDA: N7100XXUEMJ5

CSC: N7100OLBMJ4

MODEM: N7100XXUEMJ5

Until Samsung releases official update users can experience the leaked N7100XXUEMJ5 Android 4.3 test build on their Galaxy Note 2 following our step-by-step guide. It should be noted that the N7100XXUEMJ5 is an unbranded version of firmware and can be installed on any unlocked N7100 unit.

IBTimes UK reminds its readers that it will not be held liable for any damage to the device. Users are also advised to verify their handsets meet following set of requirements.

Pre-requisites

1) Install USB Drivers for Samsung Galaxy Note 2 to connect the Android device with computer.

2) Enable USB Debugging Mode on phone to connect it with the computer and use Android SDK with it. [Press Menu>> Settings>> Applications. From there navigate and click on Development option then check USB Debugging Mode.]

3) As the tutorial is likely to wipe out all data of the phone, create a backup. If the device is having any custom recoveries such as CWM/TWRP installed then backup data using the recovery.

4) The Note 2 should have battery charge above 80%.

5) The device should be factory unlocked and not locked to a particular carrier.

6) The phone will lose custom ROM with the installation of official firmware. Also, the custom recovery will be replaced by the stock recovery.

7) The device will no longer belong to a rooted version once official firmware is installed.

8) XXUEMJ5 Android 4.3 official firmware works only with Samsung Galaxy Note 2 GT-N7100. As flashing this on any incorrect variant might brick the device, verify the model number of Note 2 by navigating to Settings>> About phone>> Model number.

Steps to install XXUEMJ5 Android 4.3 Jelly Bean on Galaxy Note 2 N7100

Step-1: Download N7100XXUEMJ5 Android 4.3 Jelly Bean official firmware for Galaxy Note 2 to computer. Extract the downloaded firmware file to get

N7100XXUEMJ5_N7100OLBEMJ4_N7100XXUEMJ5_HOME.tar.md5 file

Step-2: Download Odin3.09. Extract Odin zip to get Odin v3.09.exe in it

Step-3: Double-click to open the Odin3 v3.09.exe file to start Odin

Step-4: Restart the Galaxy Note 2 in to Download Mode. To do so, first power off the phone and wait for five to six seconds after the display is off. Press and hold Volume Down, Power and Home buttons together until a warning screen appears. Then press the Volume Up button to continue to enter into Download Mode

Step-5: Connect the phone to computer using USB cable while it is in Download Mode. The successful connection will be indicated by an Added message in Odin and also the one of the ID: COM box will turn blue with the COM port number.

Note: If the Added message does not appear, try another ISB port located at the back side of the computer. If Odin still fails to recognise the phone then reinstall USB driver.

Step-6: Click the AP button in Odin and select N7100XXUEMJ5_N7100OLBEMJ4_N7100XXUEMJ5_HOME.tar.md5 file extracted earlier

Step-7: Under the Option section in Odin, verify Auto Reboot and F.Reset Time checkboxes are selected. Uncheck Re-Partition option

Step-8: Click the Start button in Odin to begin the installation

Step-9: A PASS message will appear when the flashing is completed and the phone will restart automatically. When the home screen appear, unplug the USB cable form the phone

Galaxy Note 2 should now be updated and running on the leaked test build N7100XXUEMJ5 Android 4.3. Navigate to Settings>> About phone to verify the firmware version of the device.

How to fix bootloop issue

If the device gets encounter with any issue, such as FC or Bootlooop, with the firmware installation, then boot the phone in recovery mode. To do so, press and hold Volume Up, Home and Power buttons together. In recovery mode, perform data wiping task by selecting Wipe data/factory reset. Then reboot the phone by selecting reboot system now. In recovery mode, use Volume keys to scroll between options and Power button to select the desired option. Note that performing wiping task will erase all data including internal SD card of the device.

Update- Update Galaxy Note 2 N7100 to Official XXUEMK4 Android 4.3 Firmware [How to]
